FPV Flying Wings

FPV Pink Wing #1 : EagleTree System

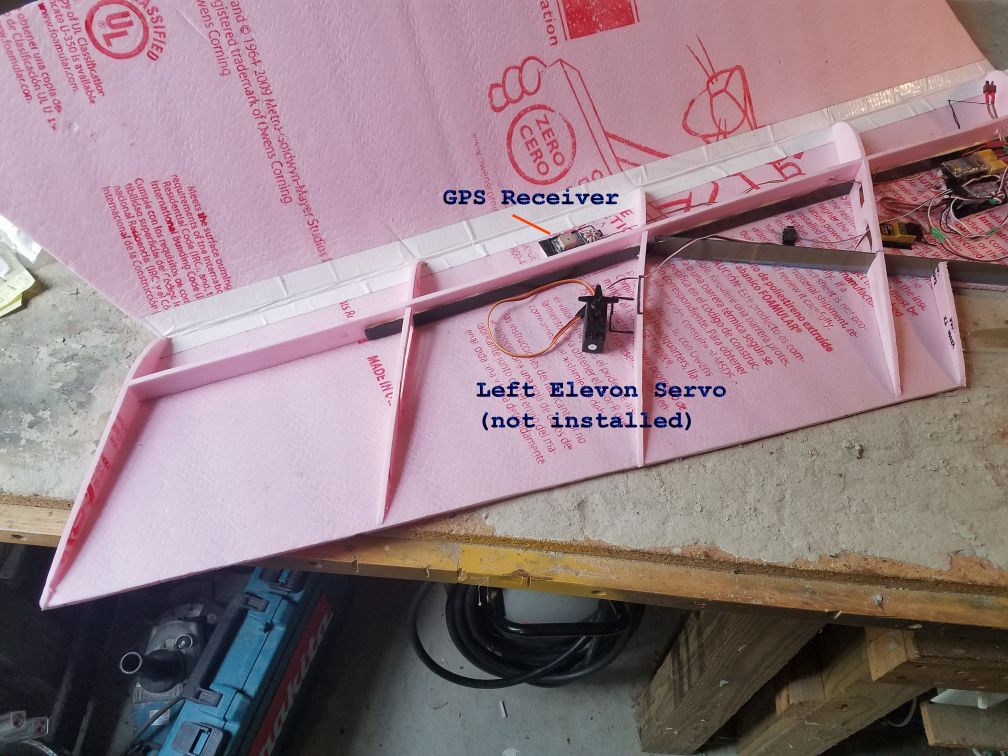

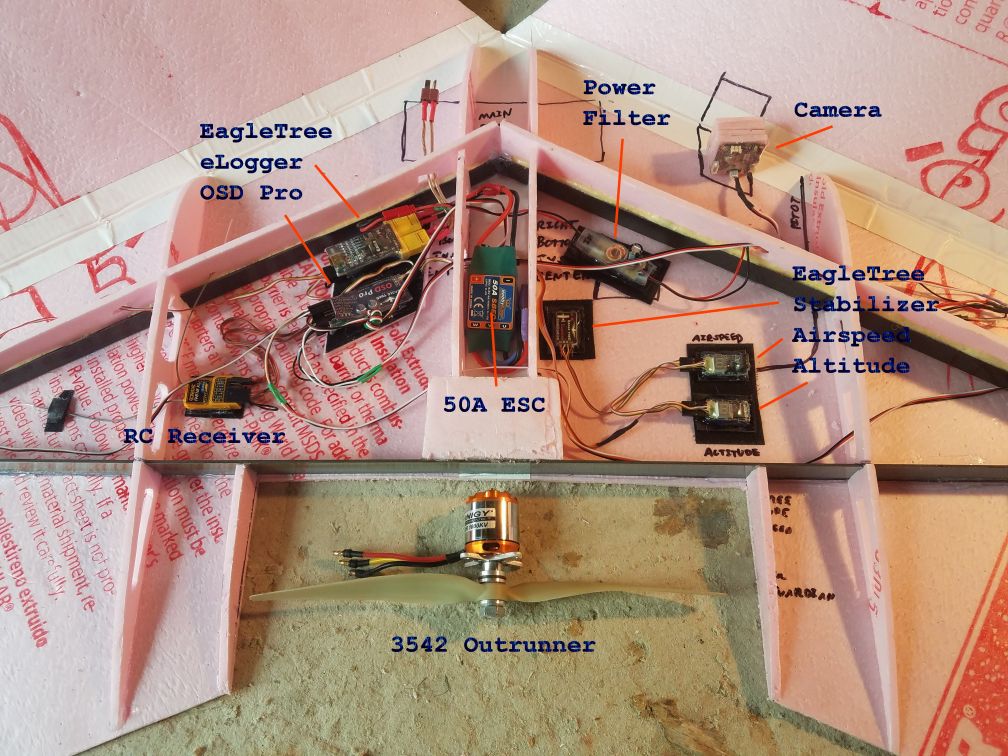

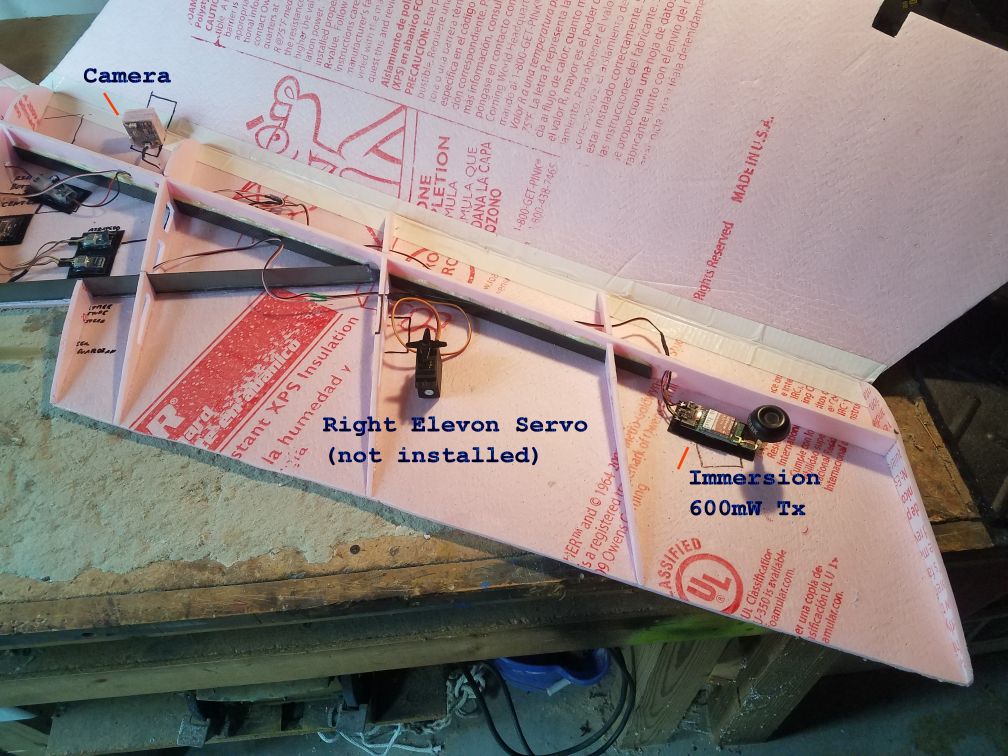

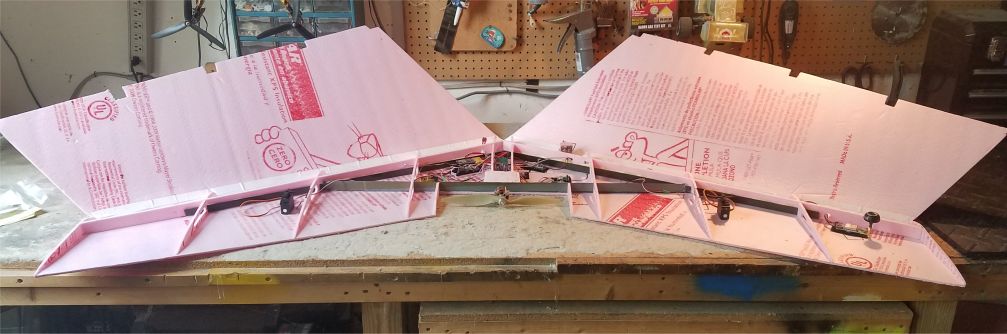

My first FPV first wing is powered by a 3542 brushless outrunner with a 50A ESC and 5200mah 3S lipo.  There is no lead in the nose with this large battery.  The control is via a DSMX receiver and two HobbyKing digital servos.  I have a complete EagleTree system in this FPV flying wing, with an airspeed sensor, barometric pressure altitude sensor, stabilizer, GPS, data recorder, voltage and current sensors, and an OSD.  The plane is a 2M flying wing and everything fits inside the wing for a nice clean installation. It has ended up being a very good flying plane with excellent video quality, handling characteristics, and the performance of the EagleTree system has been impeccable.  After I bought the EagleTree system but before it was installed to my flying wing, I used it for part of an airspeed verification flight test series on a very large, commercial UAV for the company I work for. While the complete EagleTree system costs a bit, it is plug and play and works right out of the box.  Here is a link to EagleTree’s website: http://www.eagletreesystems.com/

The video portion is comprised of a CCD camera, 600mW 5.8Ghz Tx, and power filter. The video from the camera feeds through the EagleTree OSD Pro before running to the video transmitter. The OSD Pro is set up to overlay GPS data, baro altitude, airspeed, pack voltage, current draw, total watts, and an artificial horizon onto the video downlink.  First flight was on Saturday, 29 April 2017.

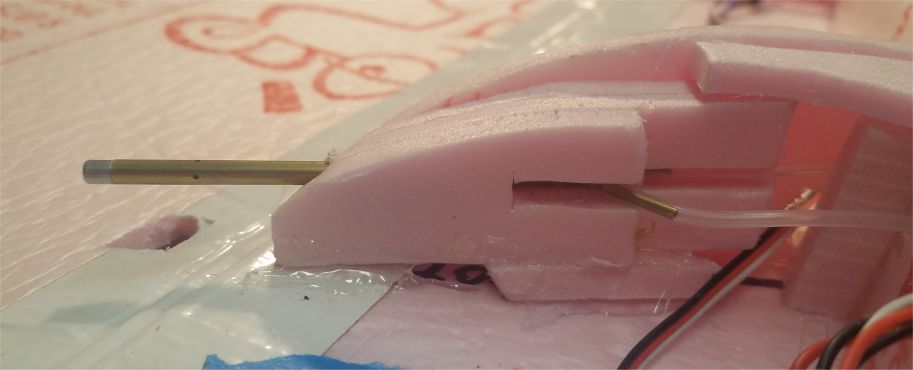

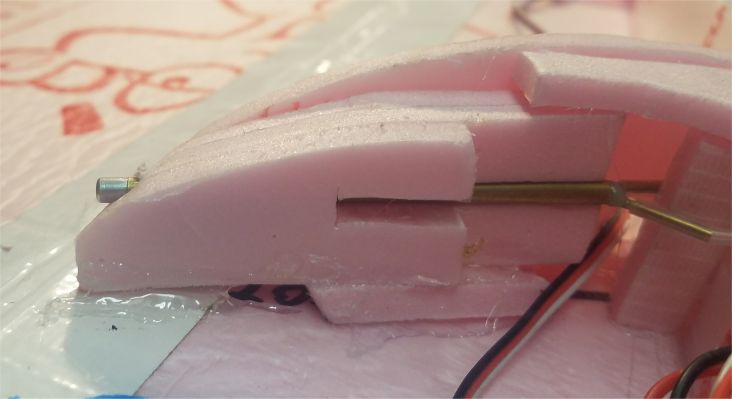

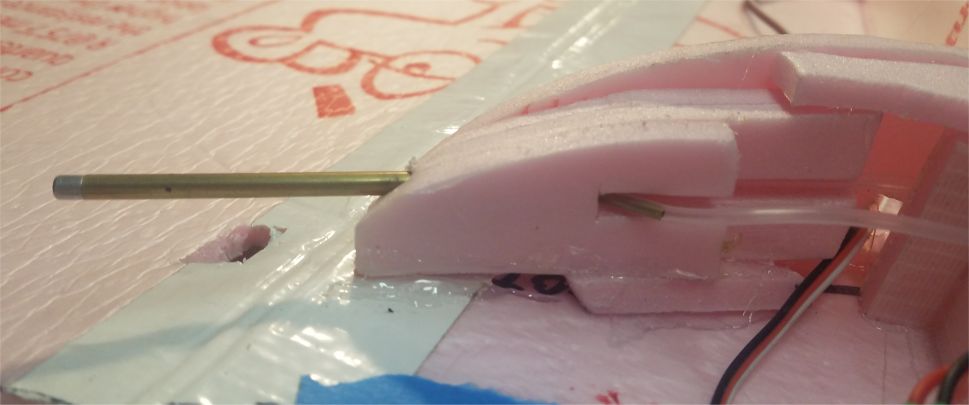

The pitot tube for the airspeed sensor slides into the wing for storage and transport.  There is a foam stop behind the tube in the wing; the stop fits in the Y between the static and pitot pressure lines.  Friction is all it takes to keep the pitot tube forward for flight.  The first three photos below show the pitot tube mechanism before the top sheet of foam was folded over.  It is tilted down slightly with respect to the bottom of the wing so it points more closely into the wind when the wing is flying at several degrees alpha (AoA).

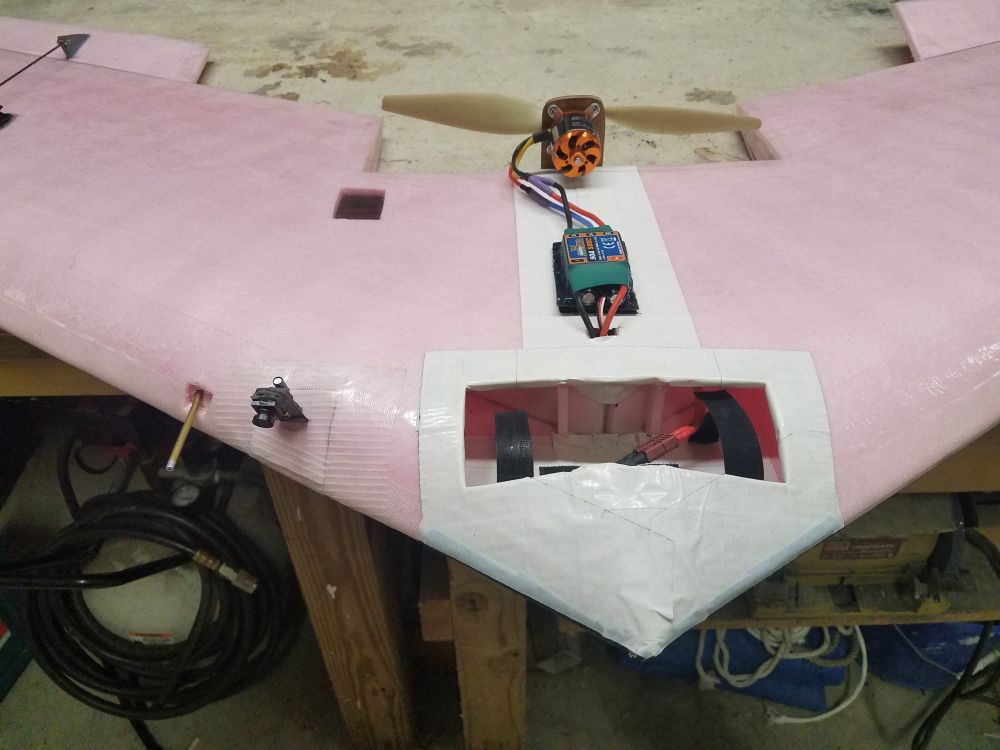

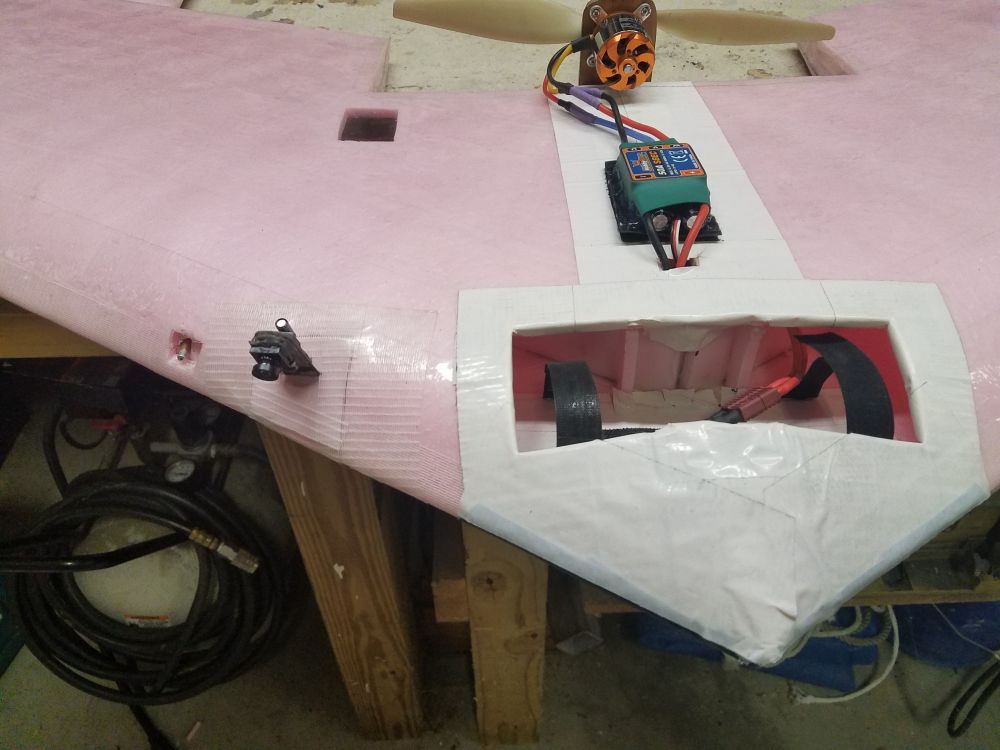

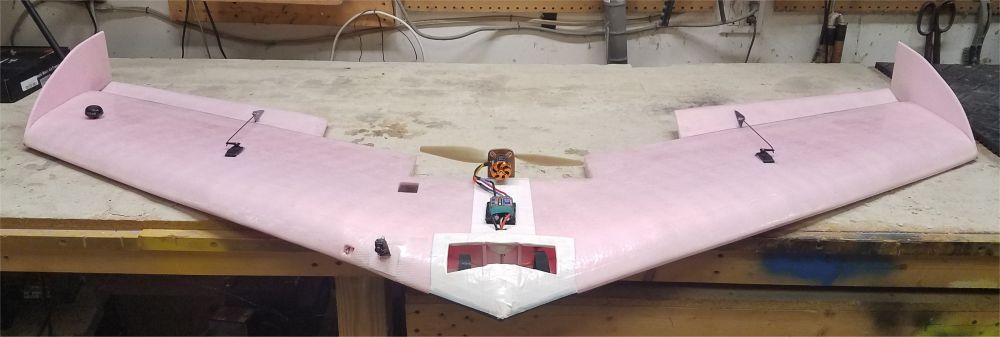

These photos show the completed wing.  You can see the pitot tube pushed out in the left photo, and retracted in the right photo.



The Immersion 600mW 5.8Ghz video transmitter originally installed was not performing well, so I swapped it out for a Boscam 600mW 5.8Ghz video transmitter in October 2017, which has improved the video very much.  I have also upgraded the camera to a higher quality 1000 TVL model.  Here are some aerial videos recorded from the downlink at the receiver on the ground.  I updated the video overlay layout to improve the layout readability and include more GPS data before the second video was recorded.


FPV Pink Wing #2 : Flip32 Flight Controller w/ OSD + uBlox GPS



I have Flip32 flight controllers running BetaFlight in several of my multirotors, and they do a good job flying my acro and racing quads.  The Flip32 is a variant of the more well-known Naze flight controller.  In addition to the standard accelerometer and gyros which make up the inertial measurement unit (IMU), the Flip32 has a barometric pressure sensor for altitude, voltage and current sensors, and includes on-screen display (OSD) hardware that can run several popular OSD software packages, including MWOSD.  This combination is great for its size, performance, and cost; it is only $10.  Here is a link to that Flip32 from HobbyKing: https://hobbyking.com/en_us/flip32-naze32-all-in-one-pro.html

Flip32 FC's

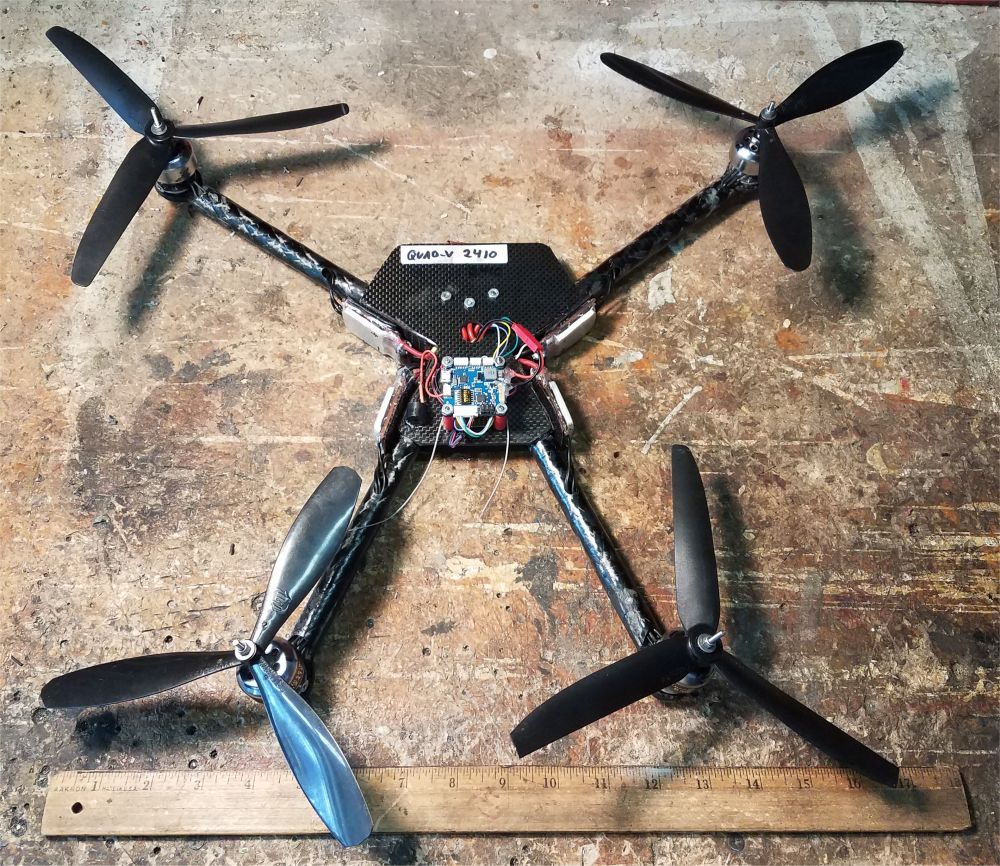

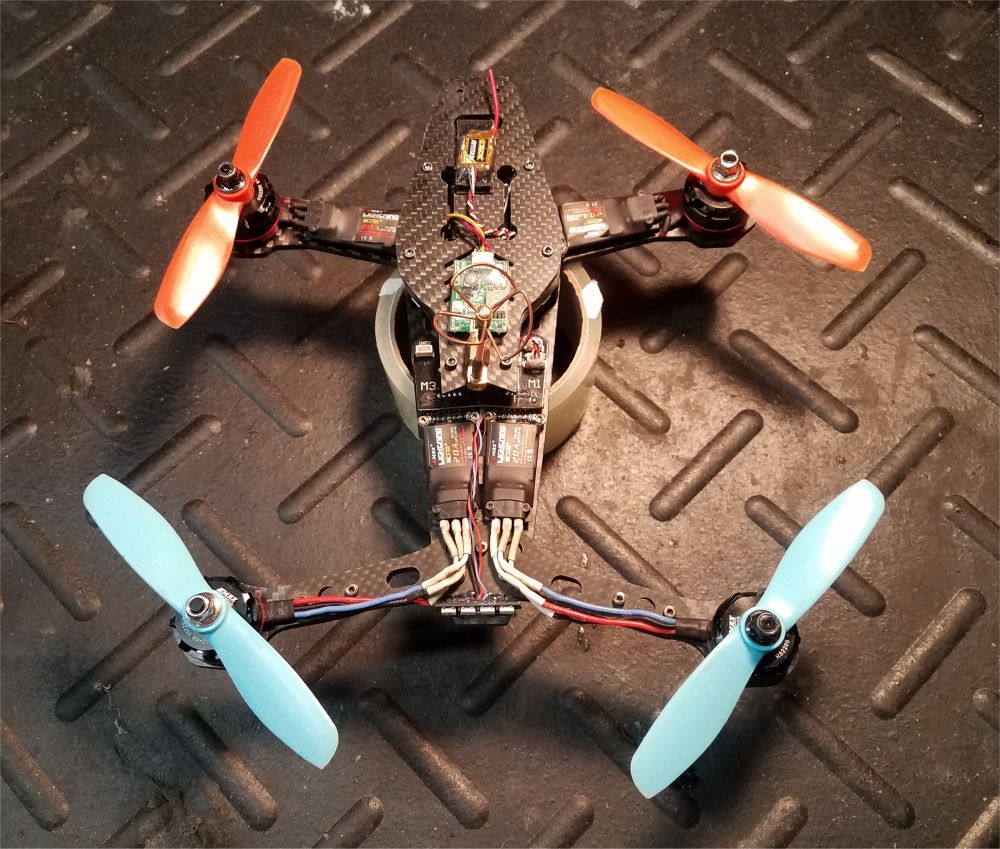

I purchased an Eachine V-Tail 210 quadcopter a while back when it was on sale at Banggood.  It comes with a small uBlox GPS, which I removed during the initial setup and modifications I made to that quadcopter to have a lighter, stronger frame. Those V-Tail 210 mods are detailed here: https://www.rcgroups.com/forums/showthread.php?2917527-Eachine-V-Tail-210-Quad-Mods

The uBlox GPS is very small, performs well, can be attached to other devices easily, and is cheap.  This uBlox GPS can be purchased by itself for $7.

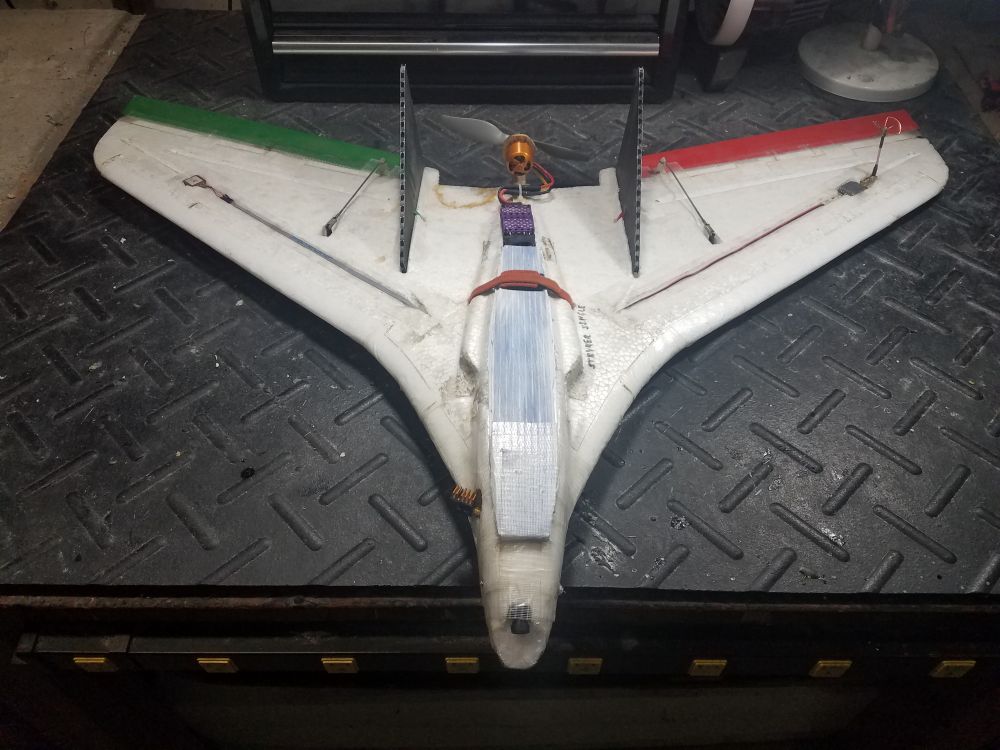

  I connected it to a MinimOSD running MWOSD compiled for direct connection to a GPS, and installed it to another of my FPV planes, this time a Stryker.  Here is a link to that uBlox GPS module from Banggood:  https://www.banggood.com/GPS-Module-with-Ceramic-Antenna-GPS-Receiver-TTL9600-Ublox-Module-for-Multirotor-p-1100984.html

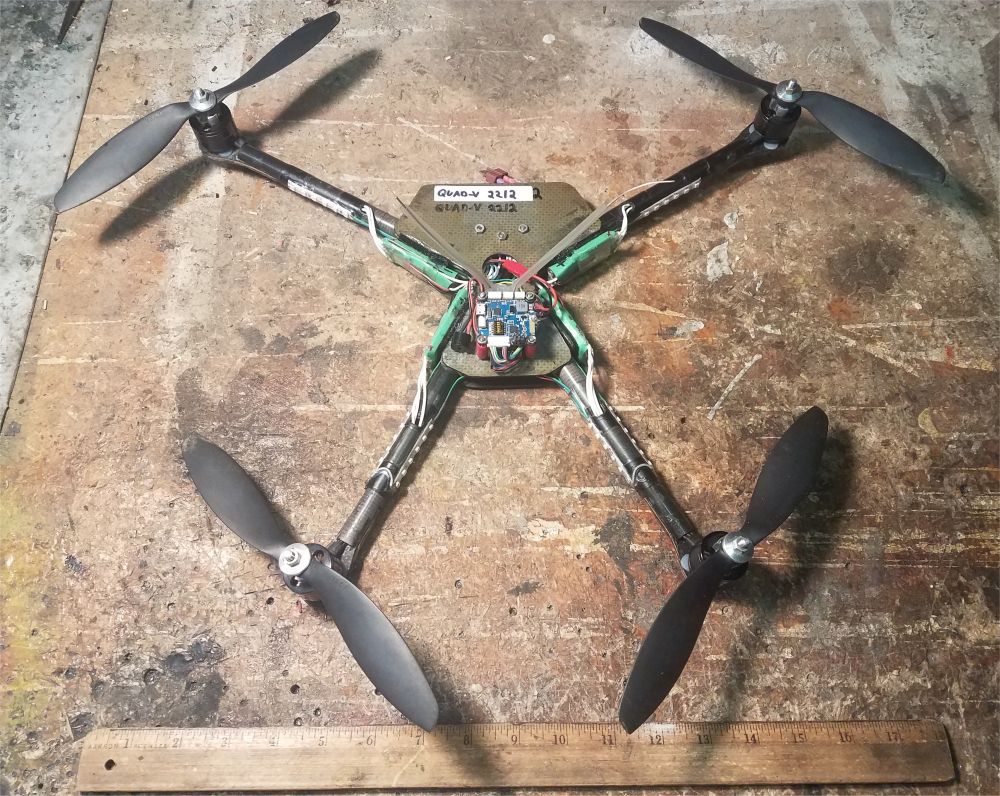

Quad 210 w/GPS --> Stryker w/GPS

I had all these pieces sitting in different planes and multirotors, and I compared their performance and capabilities.  It occurred me that the Flip32/OSD + uBlox GPS, which can be purchased for $17 total including shipping, gives about the same capabilities as the EagleTree system, which costs a lot more.  You must be able to do soldering, software installation and setup to get the Flip32/OSD + uBlox GPS to work.  For a fixed wing airplane, iNav software is installed instead of CleanFlight or BetaFlight. The installation and setup of iNav is done with the iNav Configurator, available for free on-line.  The OSD hardware comes pre-installed with MWOSD 1.5.  The setup of MWOSD is done with the Scarab MWOSD configure program, also available for free on-line.  While these software packages are free, if you enjoy their use, please consider donating to the authors as they have spent a lot of time on the development.  If you wish to update to the latest version of MWOSD, version 1.7, you will have to purchase the configure program for $2.

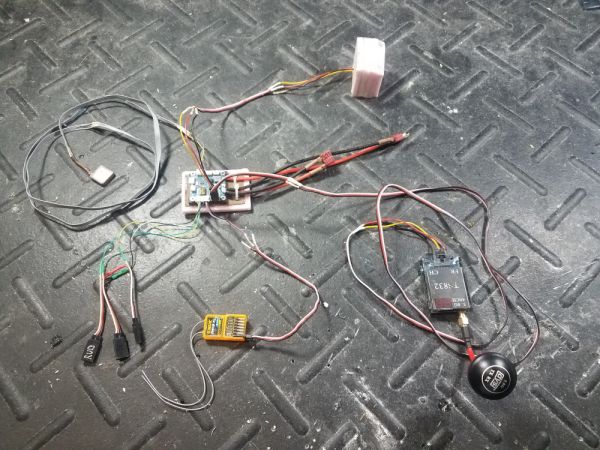

uBlox GPS, Flip32 FC with battery leads, camera, Boscam video Tx, DSMX 618 Rx w/ PPM output

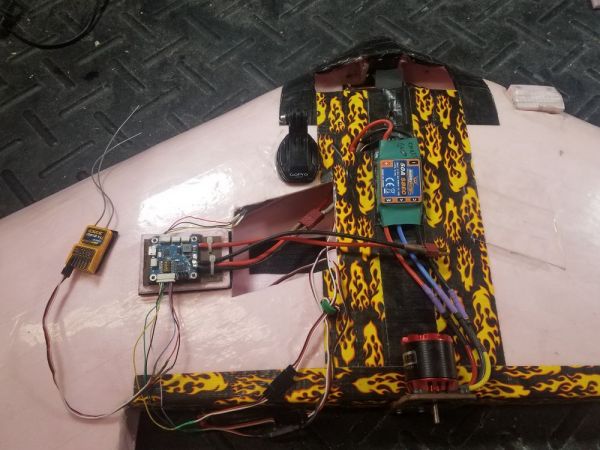

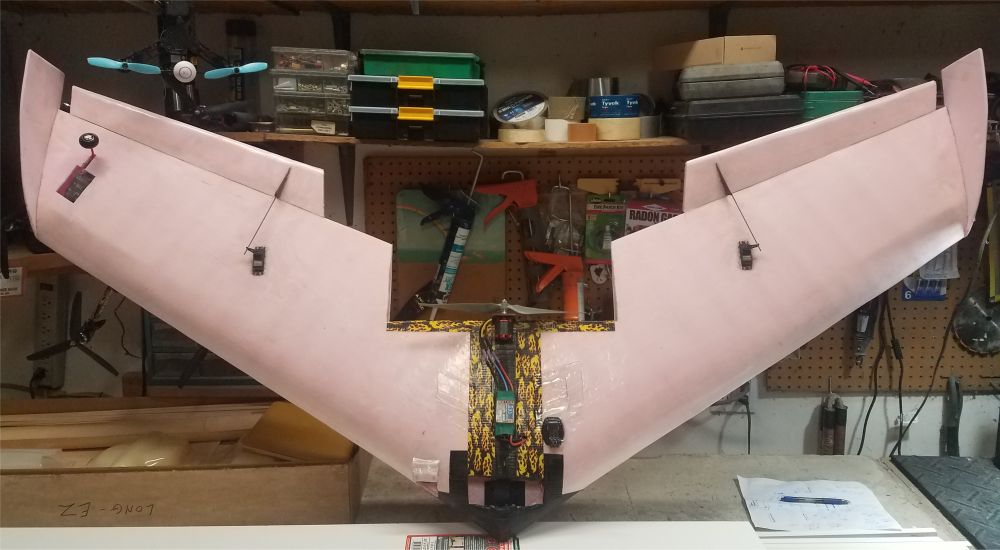

I bought additional Flip32 FCs and uBlox GPS receivers, and have installed a set to second, identical 2M flying wing.  Both flying wings have the exact same cameras and 5.8 Ghz video transmitters for the video portion of the setup.  This has allowed an easy comparison of the two setups; EagleTree equipment in one flying wing versus the Flip32/OSD + GPS hardware in the other flying wing.

The chart below compares the EagleTree to the Flip32 + GPS for a fixed wing airplane setup.  While the Flip32 can also control multirotors with different software, I have left that option out for this comparison as it would complicate this chart.  I know I am missing stuff on both sides, but these are the highlights.  If you take away the airspeed sensor from the EagleTree configuration, which lowers the EagleTree cost a little, you get about the same hardware and abilities from both setups.

Hardware

EagleTree OSD Pro
+ eLogger V3 / V4
+ stabilizer + GPS
+ baro altitude sensor
+ airspeed sensor

Flip32 FC w/ OSD
+ uBlox GPS

Cost

>$200

$17

Drop-in installation

Yes, very easy

A bit of work…

Software

pre-installed

iNav – to install to FC
MWOSD 1.5 – pre-installed

Setup software

EagleTree

iNav Configurator
MWOSD Java GUI







On screen display

Yes

Yes

Voltage sensor

Yes

Yes

Current sensor

Yes

Yes

Data recording

Yes

No







Accelerometers + Gyros

Yes

Yes

Stability augmentation

Yes

Yes

Auto-level

Yes

Yes







GPS sensor

Yes

Yes

Return home

Yes

Yes

Waypoint Navigation

3 points

30 points

Radar / Which way home?

Yes

Yes







Baro altitude sensor

Yes

Yes

Variometer

Yes + audio

Yes

Altitude hold

No

Yes







Airspeed sensor

Yes

No

Getting everything in that Flip32 column to work takes time and some learning, and that is what this article is about.
